Peak sensor with tunnel diode (CB21514E)

Details
Written by: Newton C. Braga

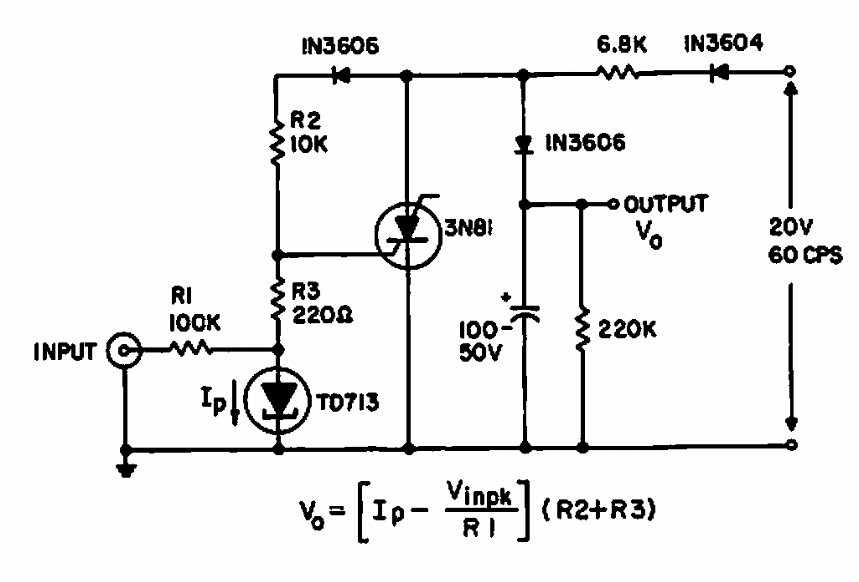

This circuit was found in old General Electric documentation. The circuit makes use of a unijunction programmable transistor.
