Bistable (CB21100E)

Details
Written by: Newton C. Braga

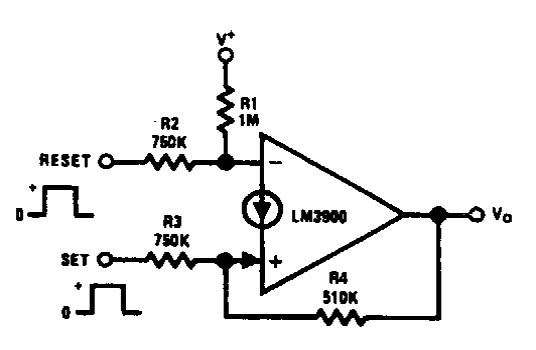

This bistable with transconductance operational amplifier was found in early National semiconductor documentation.
