Current limiter (CB21157E)

Details
Written by: Newton C. Braga

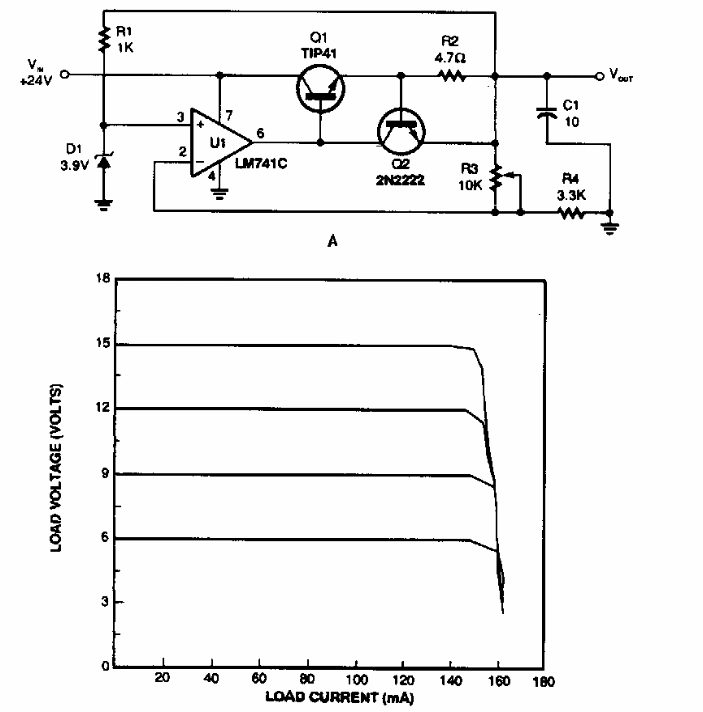

This circuit was found in a Popular Electronics from the 90's. The operating curve is given next to the diagram. The power transistor must have a heat sink.




| Clique na imagem para ampliar |
