AM receiver with TCA440 IC (CB21888E)

Details: Written by: Newton C. Braga

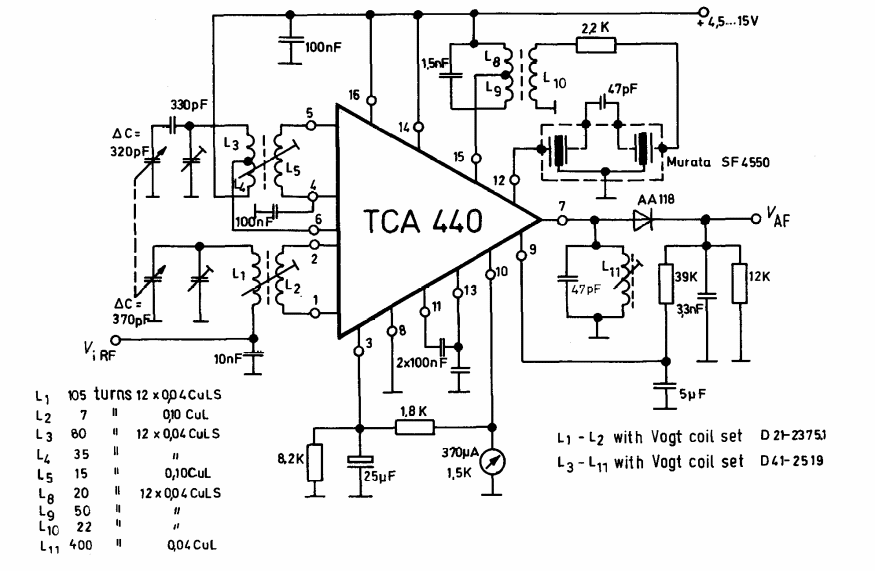

We found this receiver on a single chip in the 1976 Siemens integrated circuits manual. The circuit is of the super heterodyne type using ceramic filter in the IF.

| Clique na imagem para ampliar |
