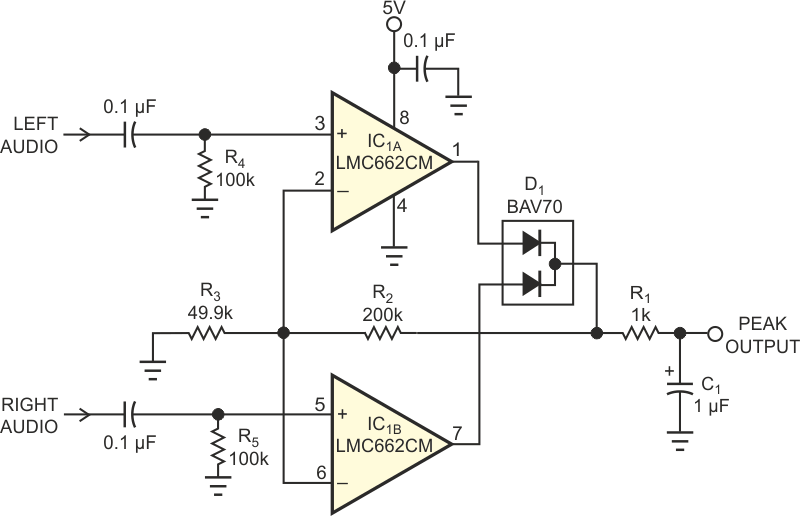

This circuit is based on the Texas Instruments LMC662 and has the function of monitoring the audio peaks of a computer-based stereo system. The circuit is for standard 200 mVrms lines being powered by unsymmetrical 5V.
| Clique na imagem para ampliar |
