Antennoscope (CB21782E)

Details
Written by: Newton C. Braga

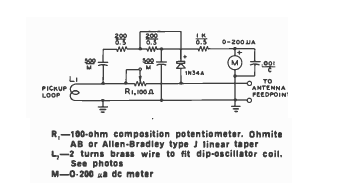

This circuit works as a useful field meter for radio amateurs. We found it in documentation from 1977.
