SCR trigger (CB21460E)

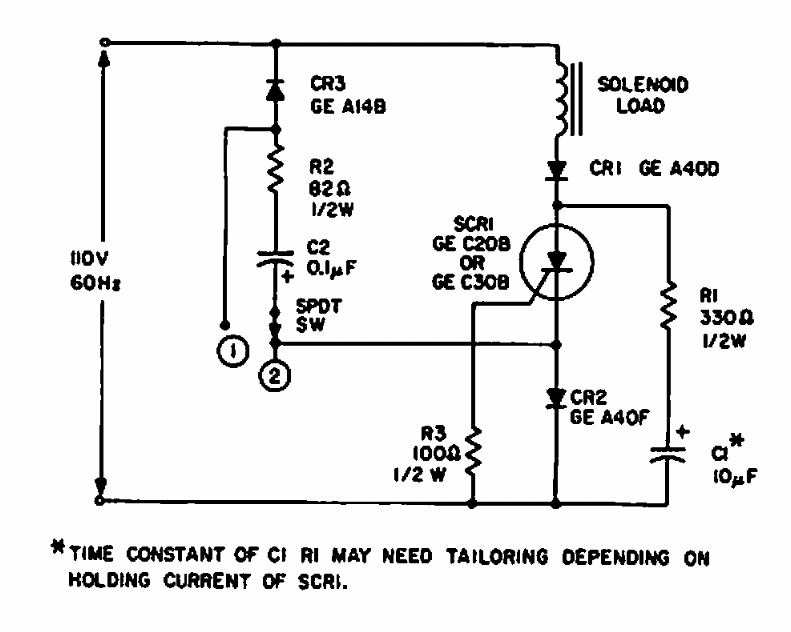

This circuit is intended to trigger SCRs on the positive half cycle for solenoid control. The circuit is from the 1967 General Electric SCR Manual.

| Clique na imagem para ampliar |
