Astable with transistors (CB21244E)

Details
Written by: Newton C. Braga

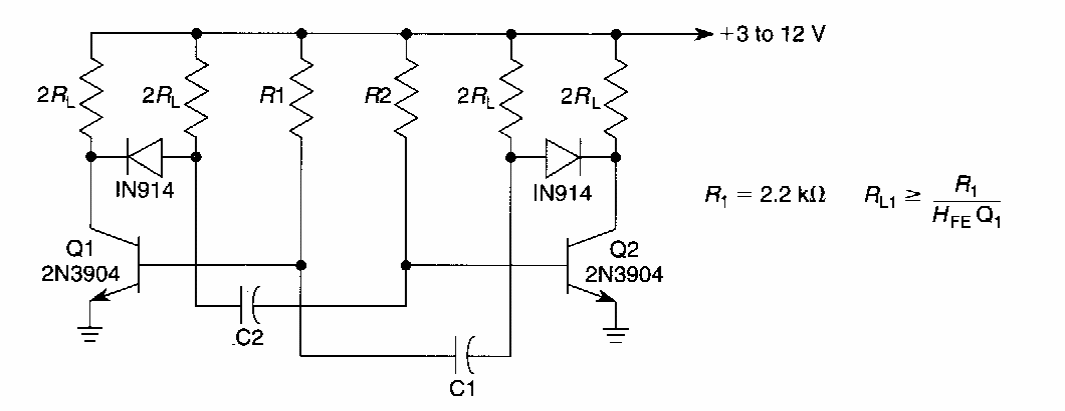

Suggested by an American documentation from the 90s, this circuit generates signals with frequencies determined by the capacitors and calculated by the formula next to the diagram.
