Buffered Voltage Reference (CB21177E)

Details
Written by: Newton C. Braga

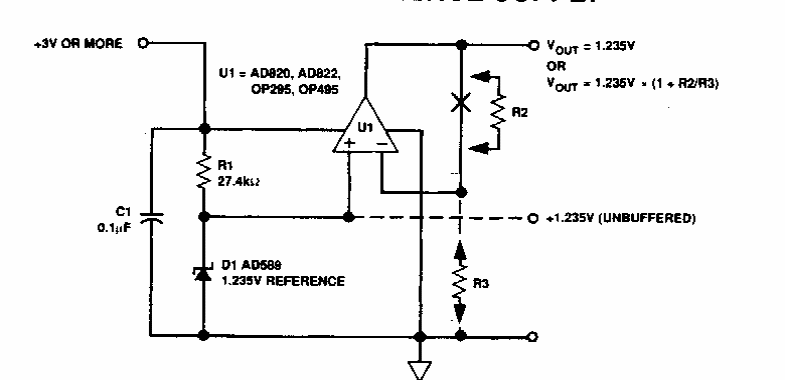

This circuit was obtained from an Analog Devices documentation from the 90's. The circuit is for a voltage of 1.23 V and is used in a voltage source greater than 3 V.




| Clique na imagem para ampliar |
