Operational audio mixer (CB21082E)

Details
Written by: Newton C. Braga

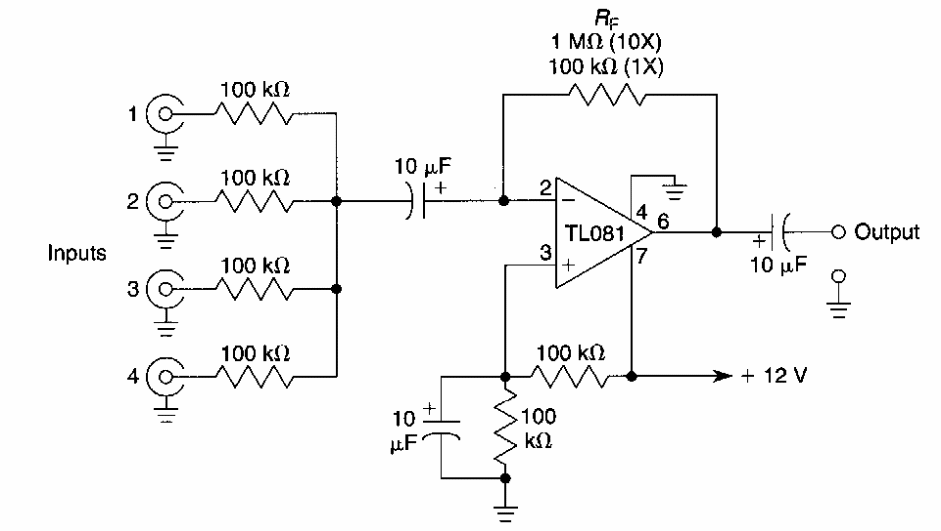

We found this mixer in an American documentation. Operational amplifier supports equivalent and changed number of inputs. Power can be between 6 and 12 V.




| Clique na imagem para ampliar |
