555 testing generator (CB21341E)

Details
Written by: Newton C. Braga

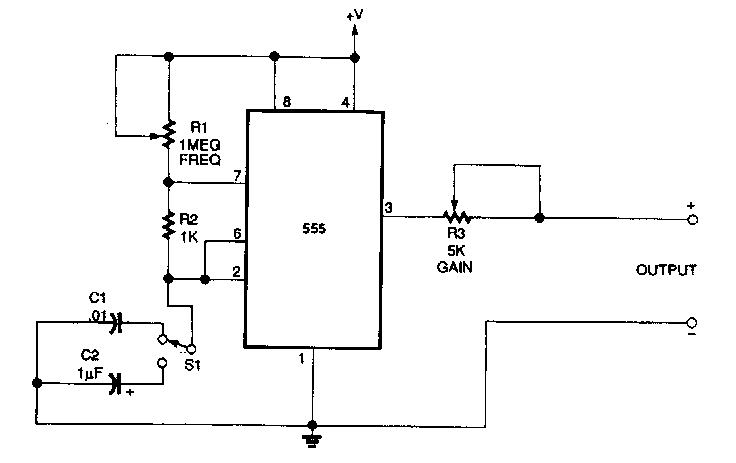

Found in Electronics Now, this circuit generates signals for testing like a signal injector. The frequency will be between 20 Hz and 10 kHz with the indicated components.






| Clique na imagem para ampliar |
