Signal source for audio and inverters (CB21340E)

Details
Written by: Newton C. Braga

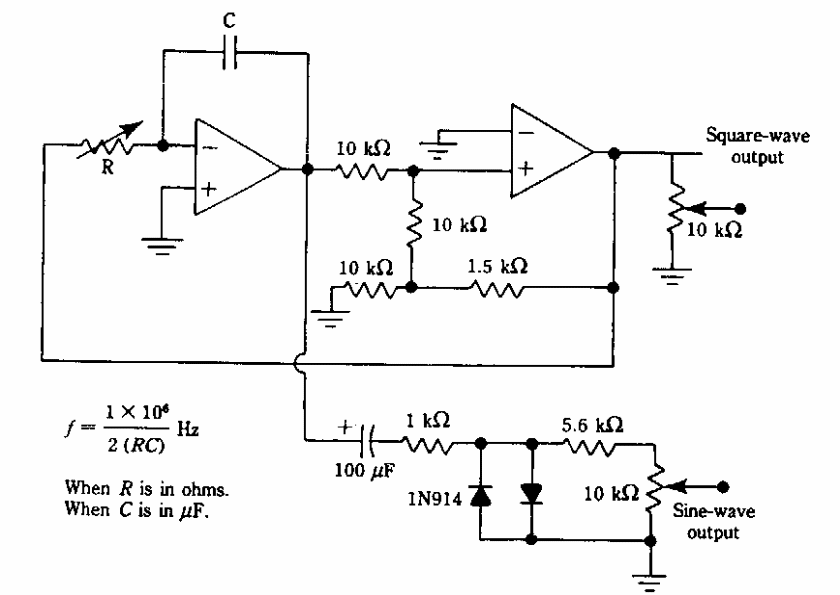

We found this circuit in an old documentation. The operational can be of any type and the frequency is given by the formula next to the diagram.
