Phone Line Simulator (CB21272E)

Details
Written by: Newton C. Braga

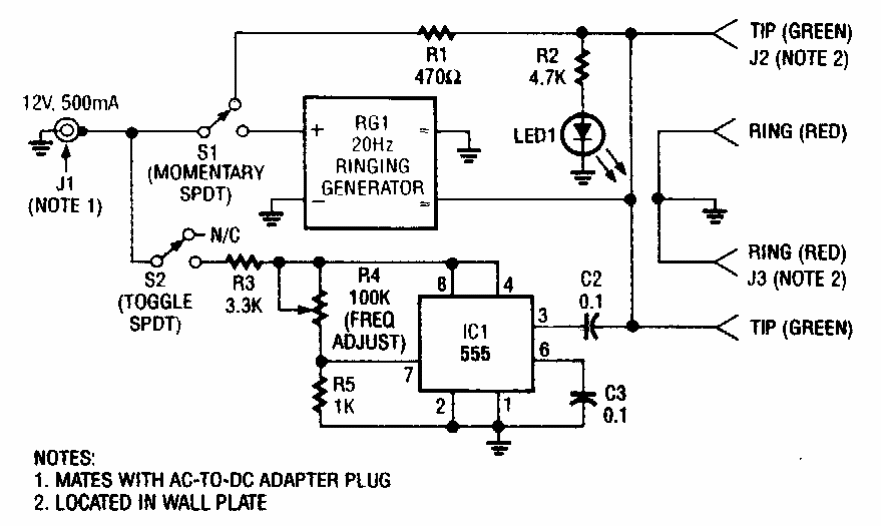

This circuit was obtained from an Electronics Now from the 90's. It generates the dial signal and the ring tone, serving for testing as well as for demonstrations.
