1 ns rise time (CB21481E)

Details
Written by: Newton C. Braga

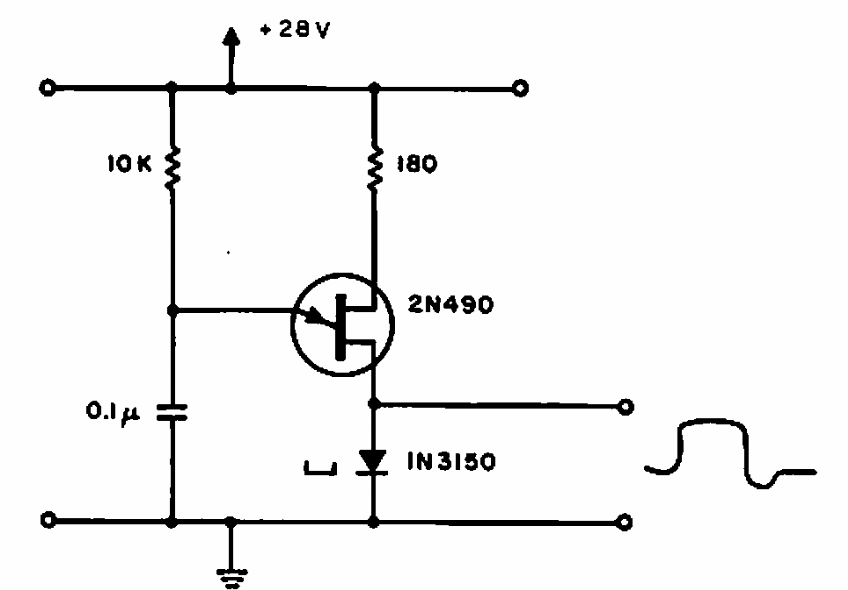

With a unijunction transistor and a tunnel diode it is possible to obtain rise times of 1 ns with the circuit shown in the figure. The circuit is from a 1965 Electronic Design.




| Clique na imagem para ampliar |
