Wien bridge oscillator (CB21864E)

Details
Written by: Newton C. Braga

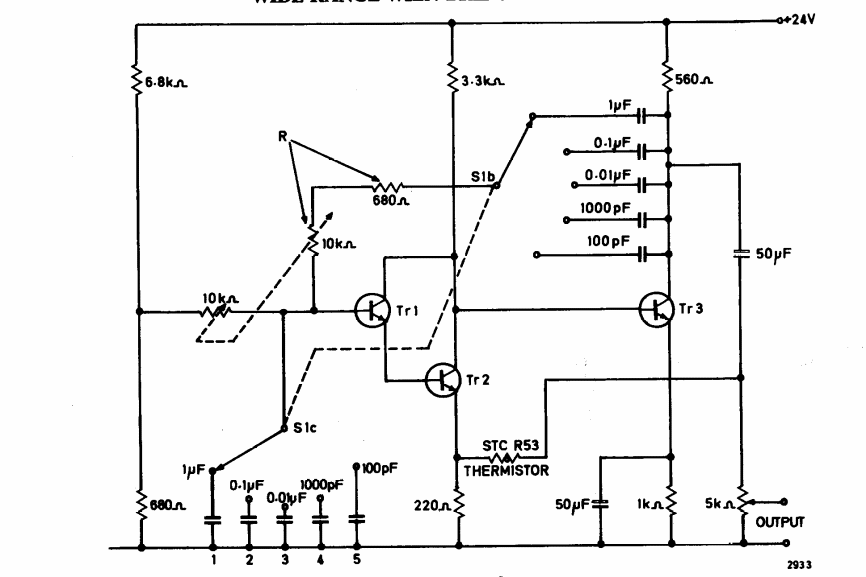

This Vienna bridge multi-band oscillator circuit was found in a 1974 Ferranti transistor manual. The circuit generates signals from 25 Hz to 1 MHz in 5 bands selected by the capacitors.




| Clique na imagem para ampliar |
