Linear VCO (CB21502E)

Details
Written by: Newton C. Braga

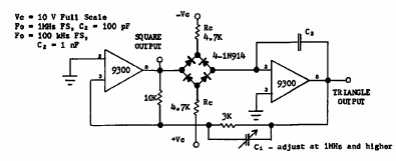

This circuit was obtained from an American documentation from the 60s. The circuit makes use of operational amplifiers of the time. Modern equivalents can be tested.
