Electronic Whistle (CB21240E)

Details
Written by: Newton C. Braga

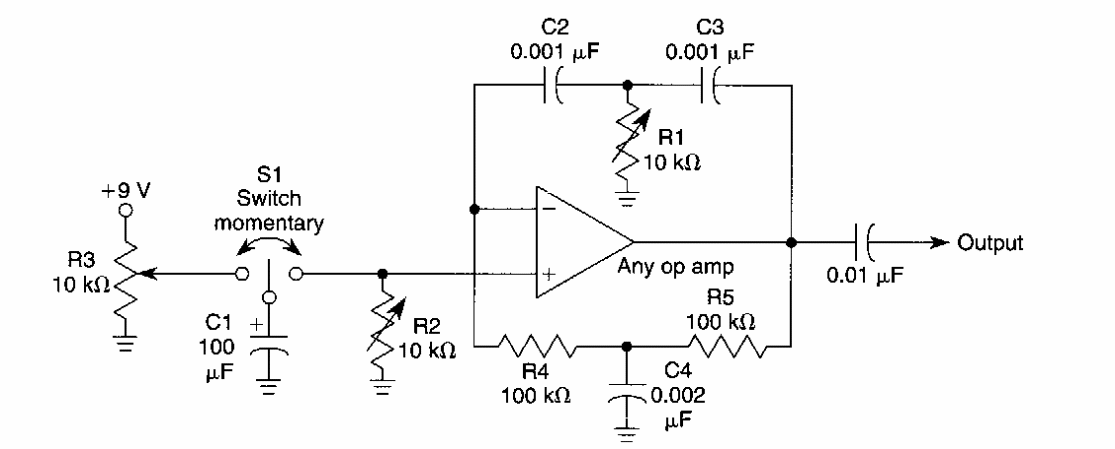

Found in American documentation from the 1990s, this circuit generates a whistling sound when applied to an amplifier. The power supply must be symmetrical.




| Clique na imagem para ampliar |
