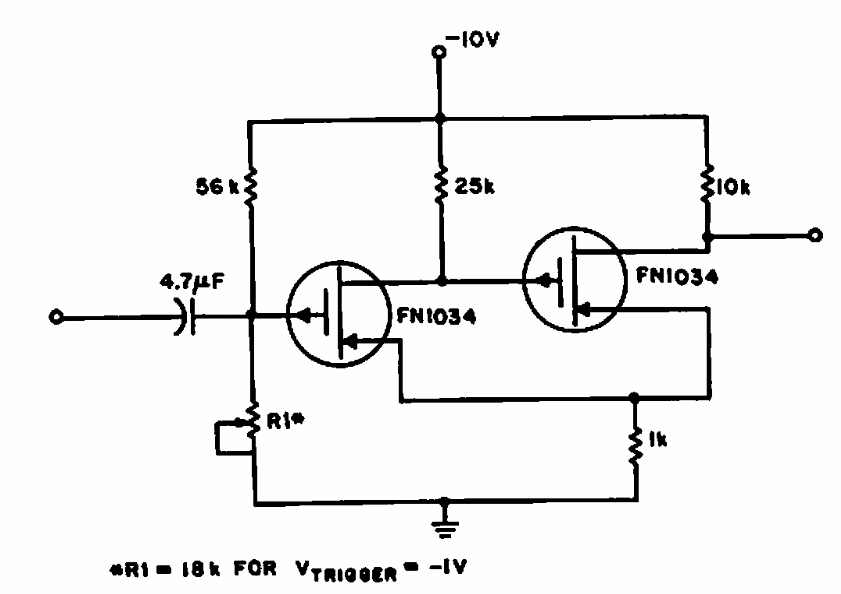

MOSFET trigger (CB21480E)

Details
Written by: Newton C. Braga



This circuit was found in a 1967 Electronic Design. FETs are from the time, so modern equivalents can be used.
