Up to 100 MHz Hartley Oscillator (CB21151E)

Details
Written by: Newton C. Braga

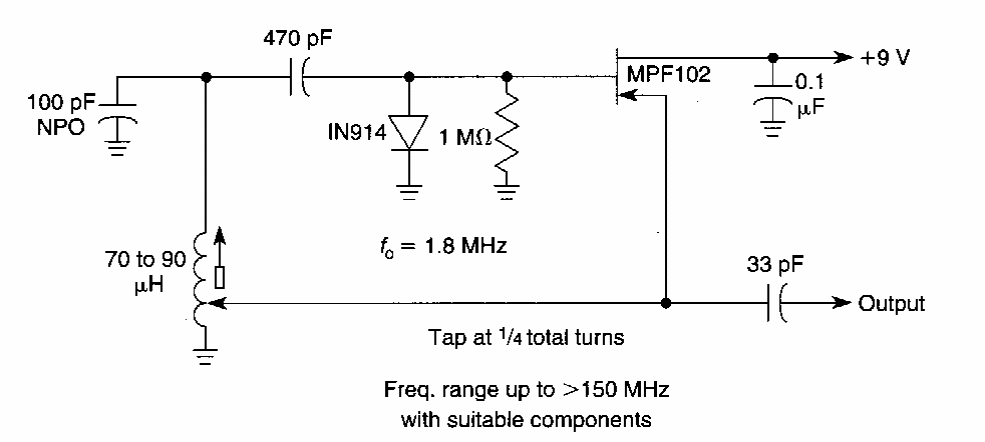

Found in American documentation from the 90's, this circuit oscillates up to 150 MHz. The transistor supports an equivalent and the diode is general-purpose.
