Heating Control (CB21371E)

Details
Written by: Newton C. Braga

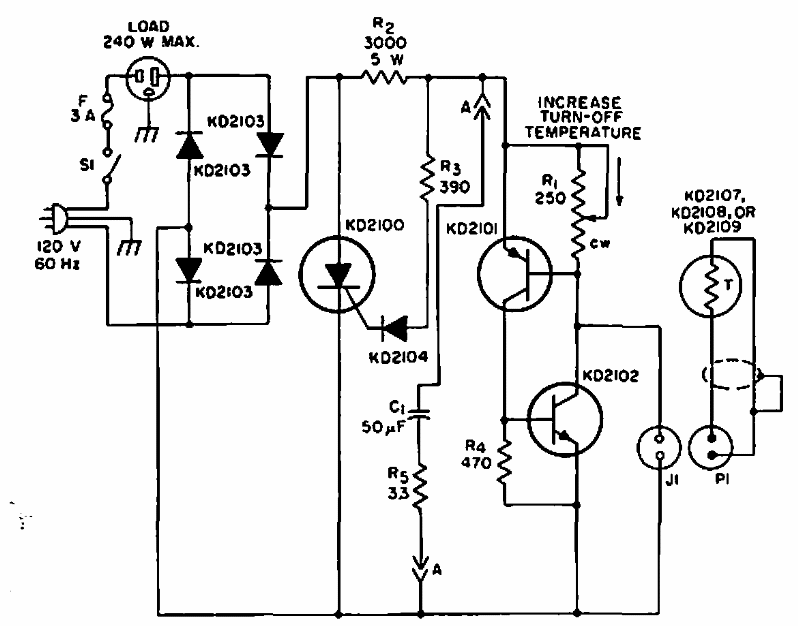

This circuit for powers up to 240 W was found in a 1967 RCA SCR manual. The SCR must be in accordance with the controlled load.
