Square Root Circuit (CB21031E)

Details
Written by: Newton C. Braga

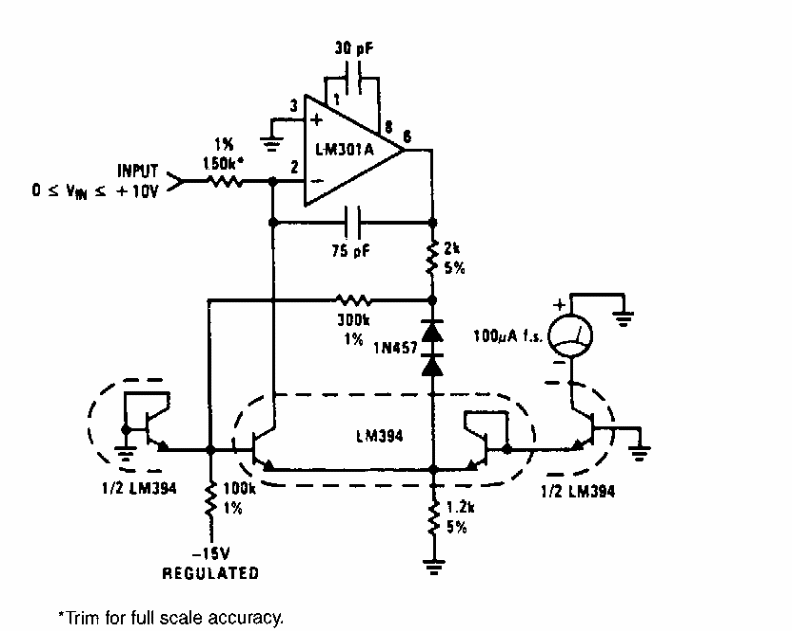

In this National Semiconductor circuit, the output voltage is numerically equal to the square root of the input voltage. The circuit is from the 90s and the components are from the period.
