Clock alarm timer (CB21290E)

Details
Written by: Newton C. Braga

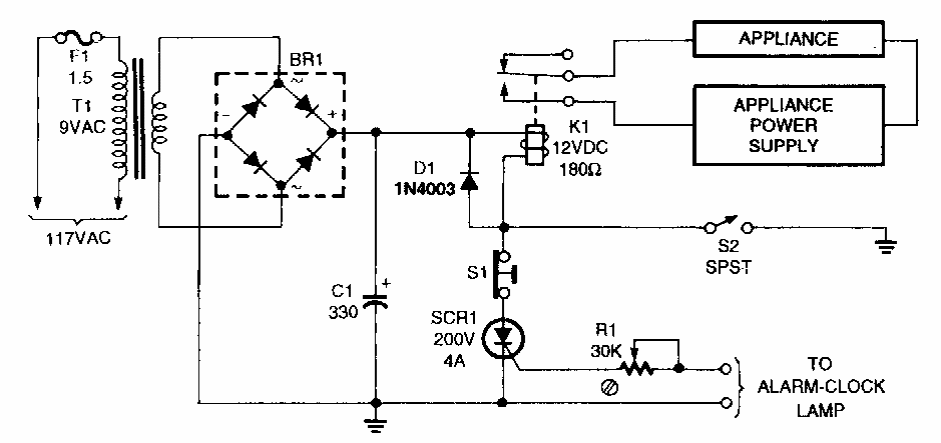

Found in Popular Electronics from the 90's, this circuit uses common components and can be easily implemented.




| Clique na imagem para ampliar |
