Voltage Limit Monitor (CB21520E)

Details
Written by: Newton C. Braga

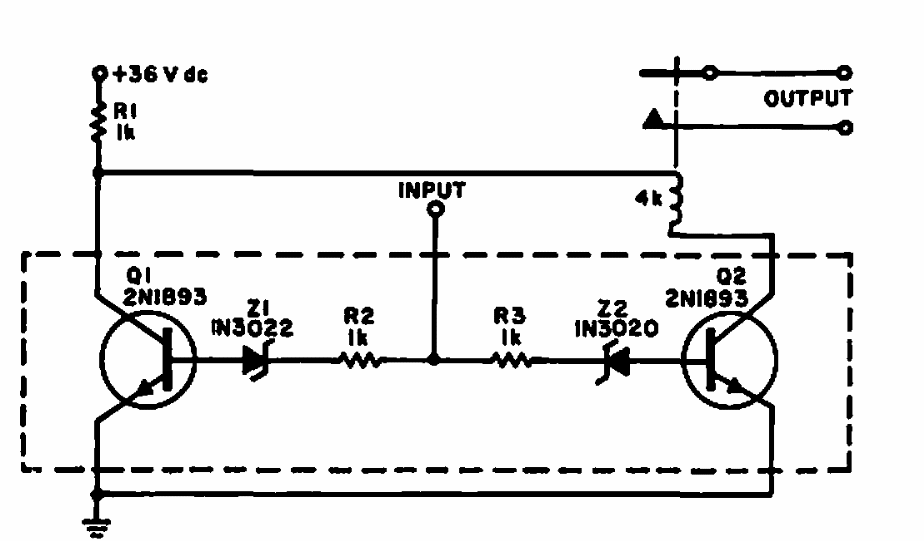

Obtained in an Electronic Design from 1968, this circuit has the voltages determined by the zener diodes. Transistors can be modern equivalents.




| Clique na imagem para ampliar |
