Zero crossing detector (CB21542E)

Details
Written by: Newton C. Braga

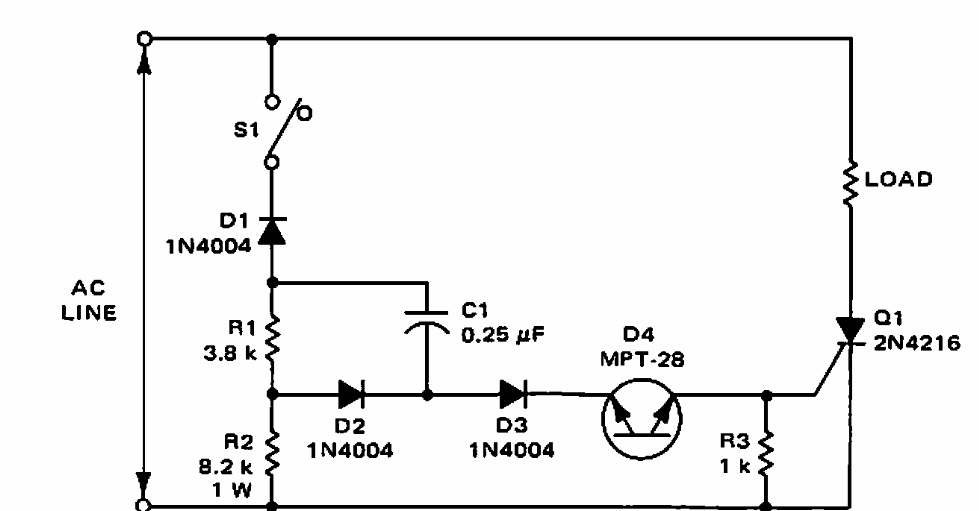

This power control from a 1968 Motorola manual shows how to use a contemporary diac as a zero-crossing detector. The SCR is of the type depending on the power of the load.
