Broadband Amplifier (CB21860E)

Details
Written by: Newton C. Braga

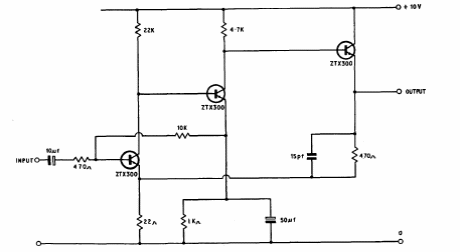

This circuit has a voltage gain of 30 times and passband of 14 MHz. The circuit is from the 1974 Ferranti transistor manual.
