Switch Amplifier (CB21820E)

Details
Written by: Newton C. Braga

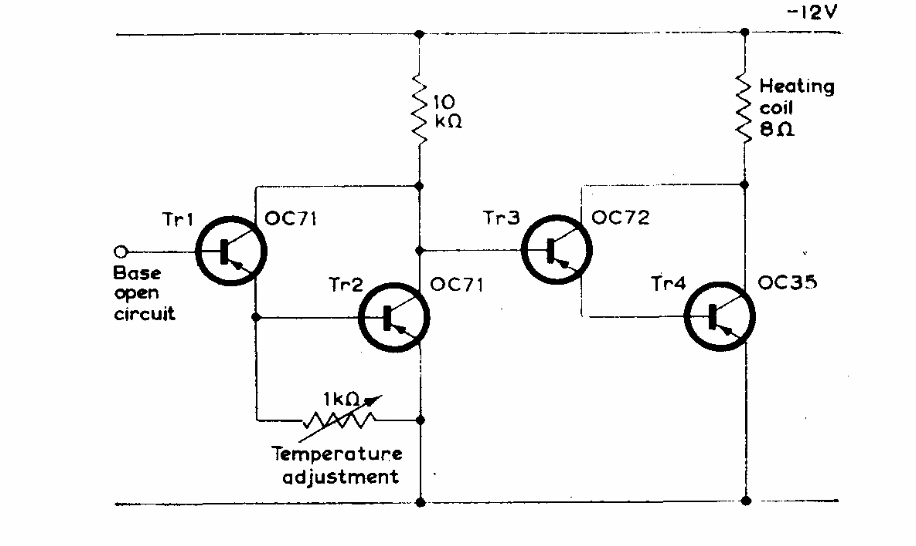

A circuit for controlling the temperature of a heating element was found in a Mullard transistor manual from 1960. Transistors are types from the time.
