Fish lure (CB21074E)

Details
Written by: Newton C. Braga

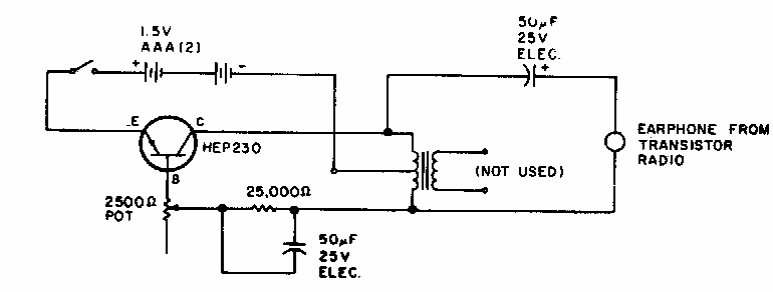

This circuit was found in an old American publication. The transformer is the type of output found in old transistor radios. The transducer is crystal headphone.




| Clique na imagem para ampliar |
