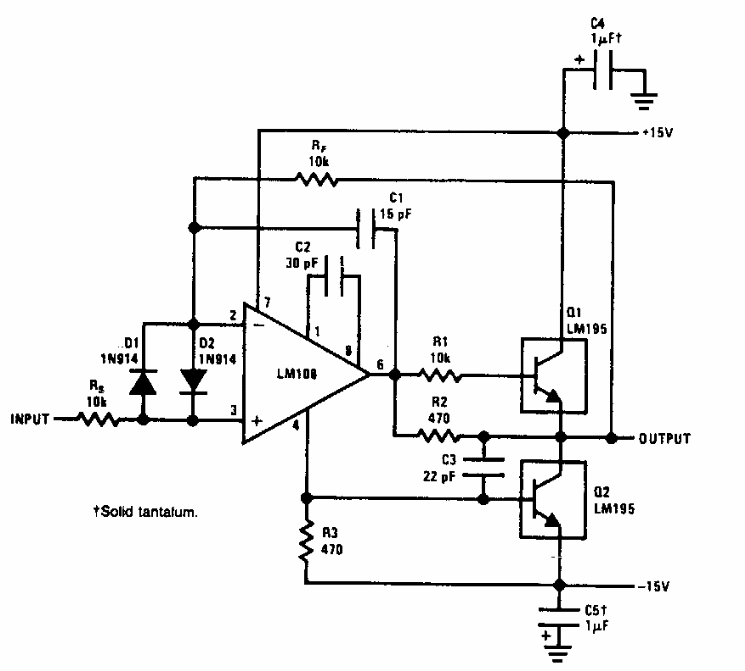

1A voltage follower (CB21073E)

This circuit was obtained from National Semiconductor documentation from the 1990s. The circuit has a passband of 300 kHz.

| Clique na imagem para ampliar |
