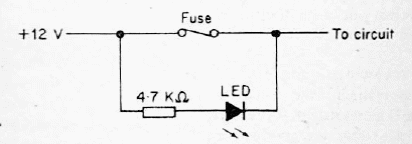

Blown fuse indicator (CB22129E)

Details
Written by: Newton C. Braga



This car circuit can be used in other applications with the proper choice of resistor. We found it in old English documentation.
