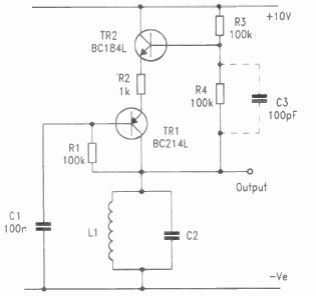

This LC oscillator with complementary transistors was found in an English publication from the 90's. The transistors admit equivalents. The frequency is given by L1 and C2.
2 complementary-transistor oscillator CB22390E (CB22390E)
- Details
- Written by: Newton C. Braga
