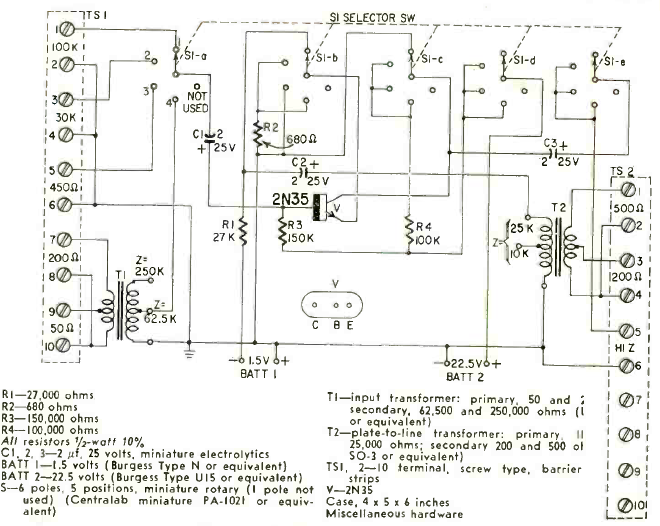

We found this circuit in Radio Electronics magazine from September 1959. The circuit has different input impedances and different output impedances. The circuit uses just one transistor functioning as an adapter.
| Clique na imagem para ampliar |
Multi impedance amplifier (CB23632E)
- Details
- Written by: Newton C. Braga
