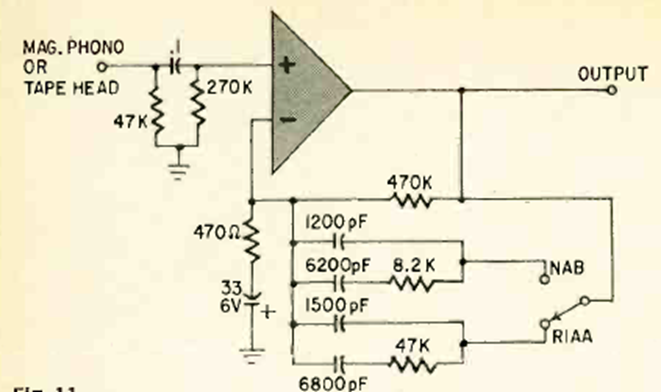

This circuit appeared in Radio Elecronics magazine in 1968. The operating circuit is a general-purpose type at the time and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Operational equalizer (CB23902E)
- Details
- Written by: Newton C. Braga
