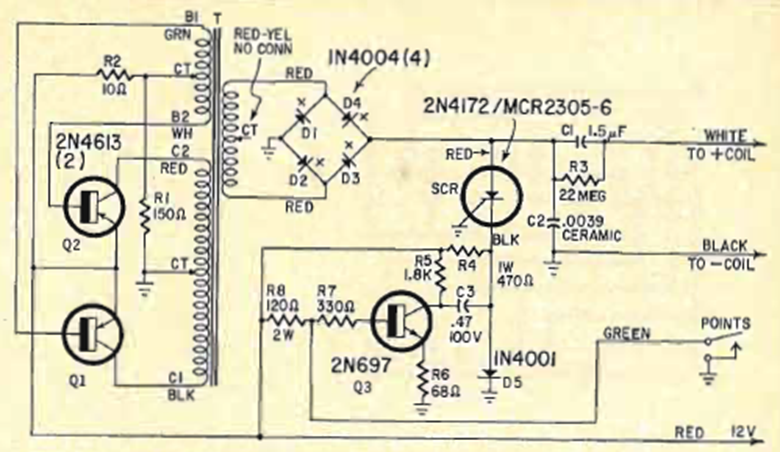

This inverter circuit for a capacitive discharge ignition system was found in a Radio Electronics magazine from February 1967. The power transistors must be equipped with heatsinks.
| Clique na imagem para ampliar |
Electronic ignition Inverter (CB23766E)
- Details
- Written by: Newton C. Braga
