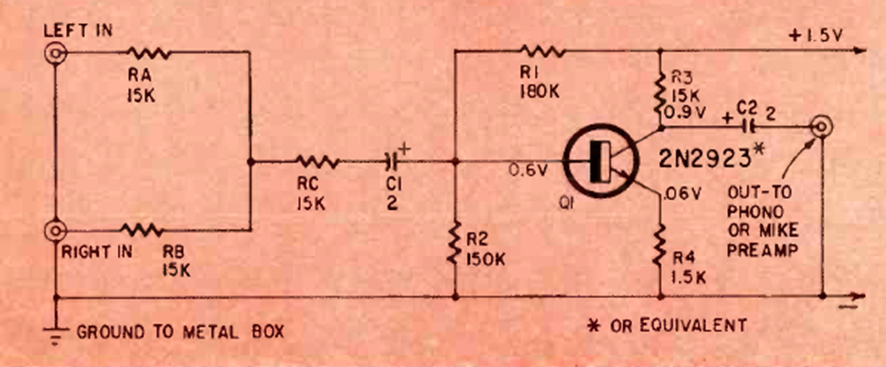

This simple 1-transistor audio preamplifier appeared in the June 1968 Radio Electronics magazine. The transistor is a general-purpose type of the time. The gain is 14 dB.
| Clique na imagem para ampliar |
Audio Mixer Preamplifier (CB23904E)
- Details
- Written by: Newton C. Braga
