Voltage test of diodes and transistors (CB22138E)

Details
Written by: Newton C. Braga

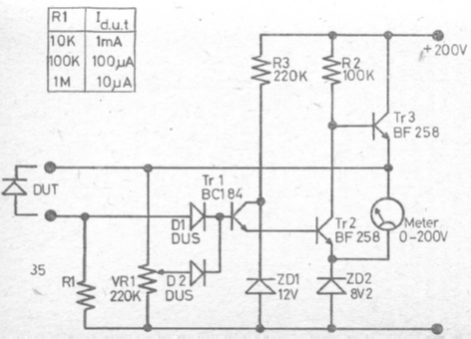

We found this junction tester circuit in an old English documentation. The circuit serves to check the inverse breakdown voltage. The transistors used are high voltage types.
