Signal follower (CB23630E)

Details
Written by: Newton C. Braga

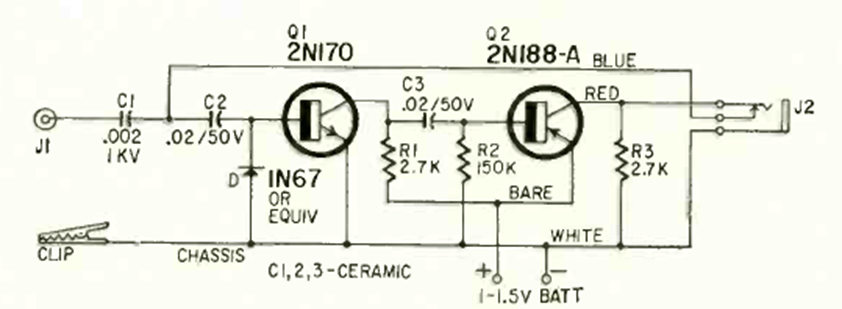

This two-transistor circuit is from a December 1964 Radio Electronics. Modern transistors can be tested. The headphone must be high impedance or crystal with a 2k2 resistor in parallel.
