6-band receiver (CB23556E)

Details
Written by: Newton C. Braga

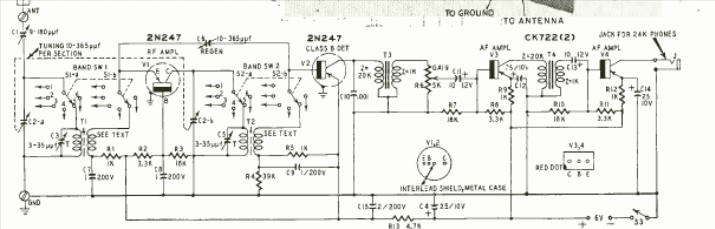

This circuit with 4 transistors can receive signals in 6 shortwave bands. The circuit is from a Radio Electronics from May 1958. The output is for high impedance headphones.
