Dimmer (CB22116E)

Details
Written by: Newton C. Braga

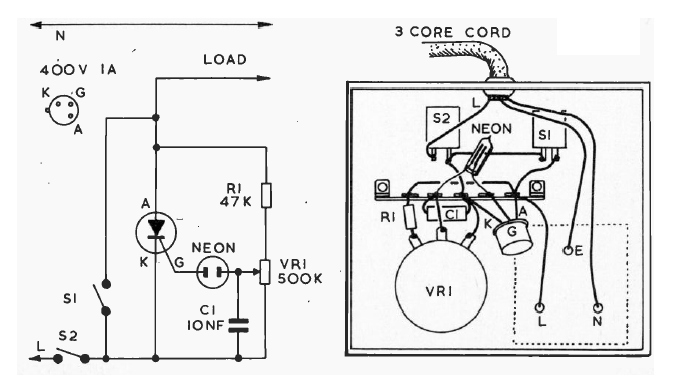

This very detailed Dimmer was found in an English documentation from the 90's. The SCR could be a modern equivalent like the TIC106. The circuit is only suitable for incandescent lamps.
