Harmonic Distortion Meter (Cb23613E)

Details
Written by: Newton C. Braga

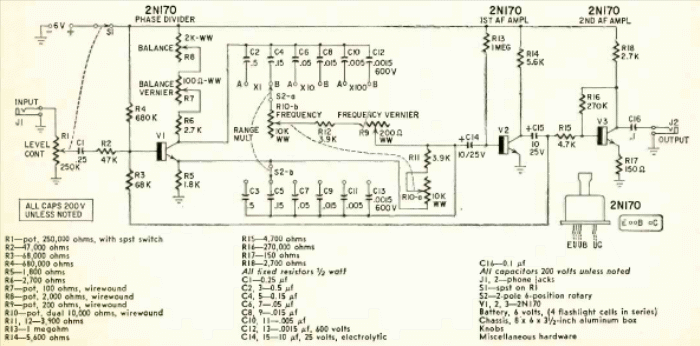

We found this sophisticated meter circuit in an article in Radio Electronics magazine from June 1959. The article taught how to assemble it. Transistors are common types at the time.
