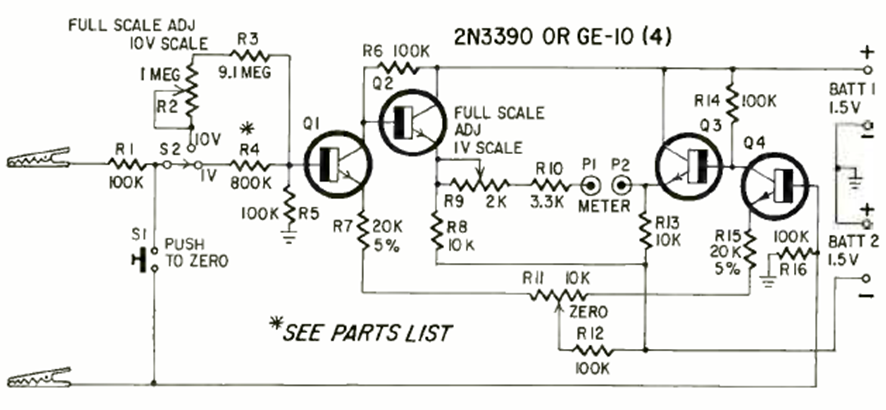

This circuit was obtained from an article in Radio Electronics magazine in October 1966. It consists of a high impedance amplifier for common multimeters. The transistors are from the time and the power is supplied by two batteries.
| Clique na imagem para ampliar |
