Power switch Using SCR (CB23952E)

Details
Written by: Newton C. Braga

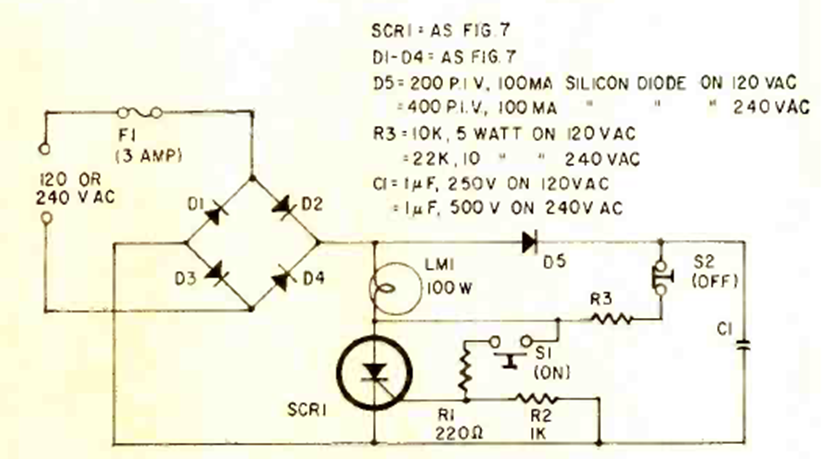

This circuit for the power grid was found in the June 1969 Radio Electronics magazine. The SCR and diodes are rated according to the power of the controlled load.




| Clique na imagem para ampliar |
