Transistor Curve Tracer (CB23986E)

Details
Written by: Newton C. Braga

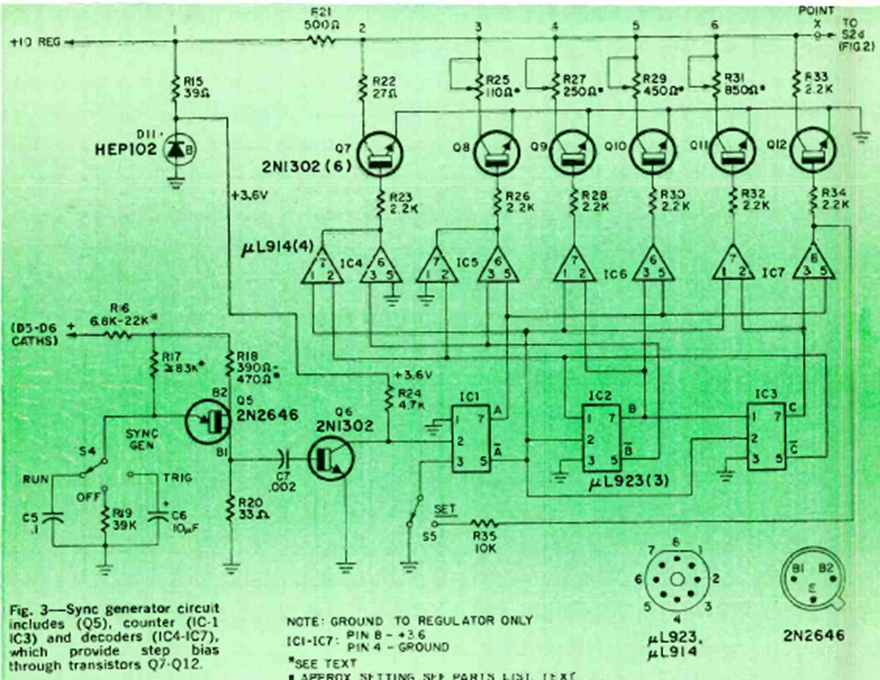

This transistor curve tracer was described in a December 1969 Radio Electronics article. It consists of a ladder-type signal generator that applies stepped voltages to the transistor under test.




| Clique na imagem para ampliar |
