Power supply with zener regulation (CB23688E)

Details
Written by: Newton C. Braga

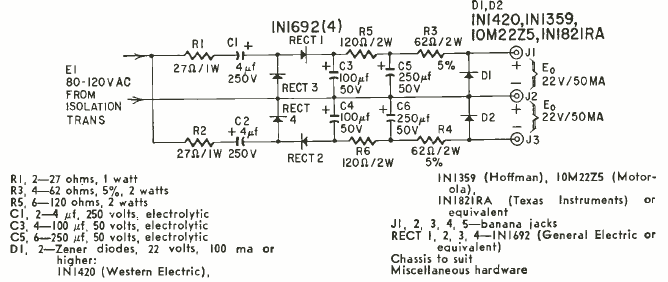

This simple low current circuit was found in a Radio Electronics magazine from August 1960. The circuit does not use transistors in regulation, but only zeners directly.




| Clique na imagem para ampliar |
