Protected Power Supply (CB23753E)

Details
Written by: Newton C. Braga

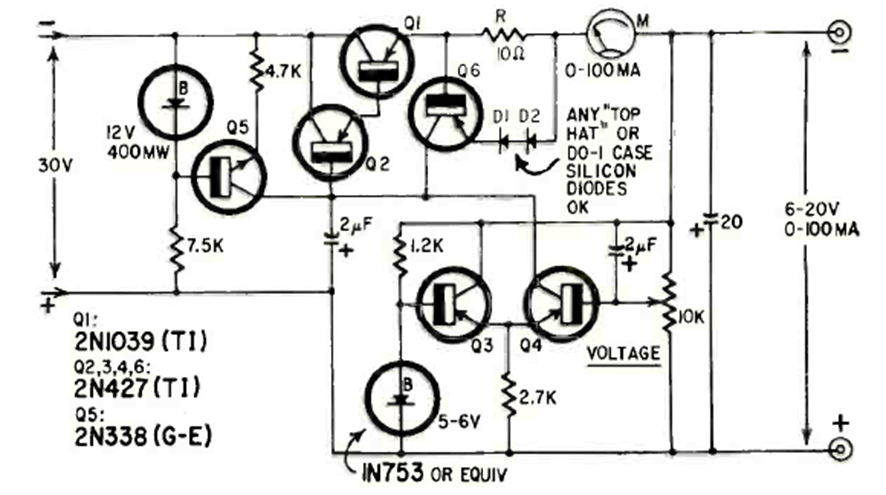

These 6 to 12 V source with current up to 100 mA was found in Radio Electronics magazine from June 19666. The source has a current indicator and uses transistors of the time.
