Power supply for amplifier (CB23879E)

Details
Written by: Newton C. Braga

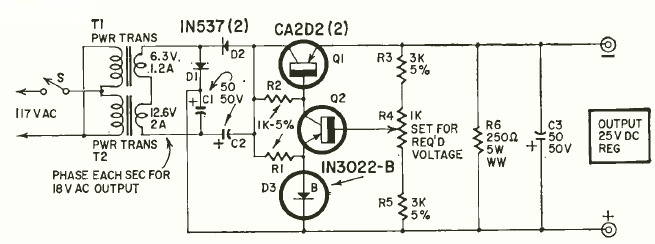

This is the power supply circuit for the amplifier in the previous circuit. The source is adjustable and uses power transistors of the time. The AC transistor must be mounted on a heat sink.




| Clique na imagem para ampliar |
