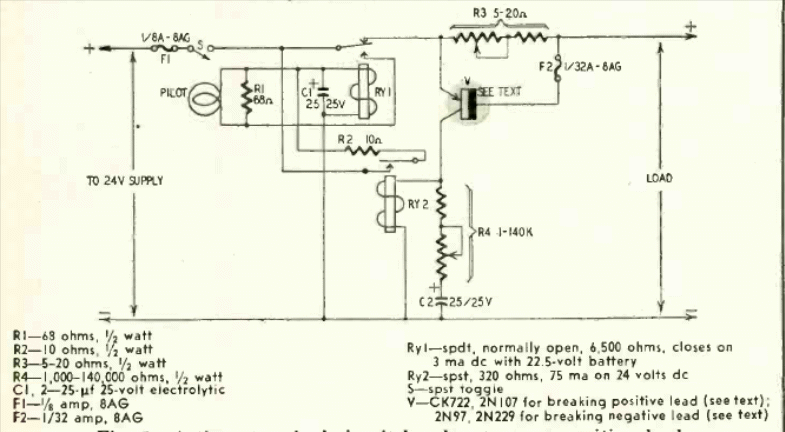

This protective circuit for power lines was found in a Radio Electronics from November 1957. The transistor used can be any general-purpose transistor such as the CK722.
| Clique na imagem para ampliar |
Current relay (CB22522E)
- Details
- Written by: Newton C. Braga
