Geiger counter (CB23618E)

Details
Written by: Newton C. Braga

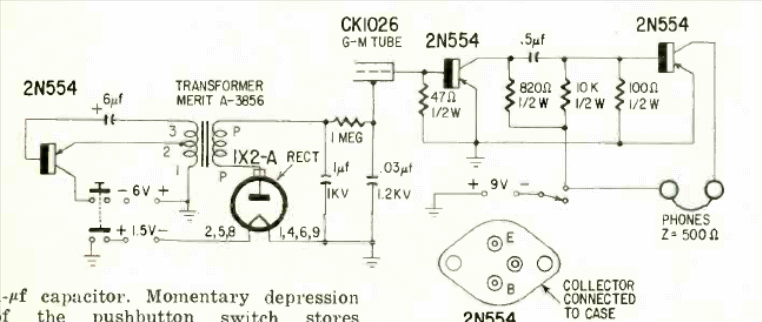

This circuit was published in Radio Electronics magazine in June 1959. The circuit uses an inverter with transformer to generate the high voltage of the Geiger tube.
