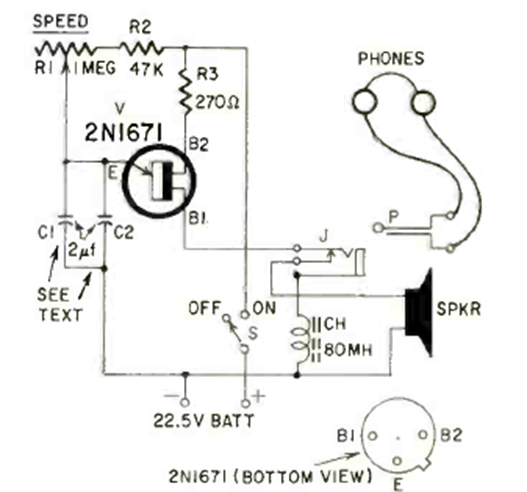

This simple unijunction circuit is from a Radio Electronics from July 1963. It can be assembled with a 2N2646 or another modern unijunction transistor. The headphones are low impedance.
Unijunction Metronome (CB23525E)
- Details
- Written by: Newton C. Braga
