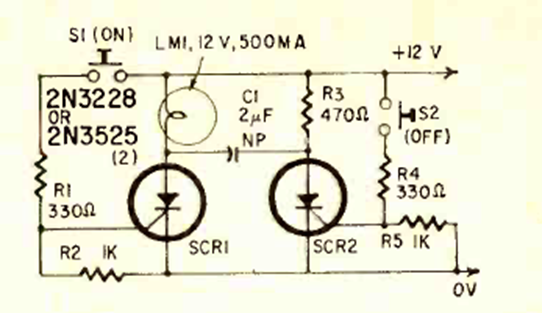

This circuit is from a Radio Electronics magazine from June 1969. The circuit uses two SCRS to turn a lamp on and off with two switches. The supply voltage depends on the lamps.
Bistable with 2 SCRs (CB23947E)
- Details
- Written by: Newton C. Braga
This circuit is from a Radio Electronics magazine from June 1969. The circuit uses two SCRS to turn a lamp on and off with two switches. The supply voltage depends on the lamps.
