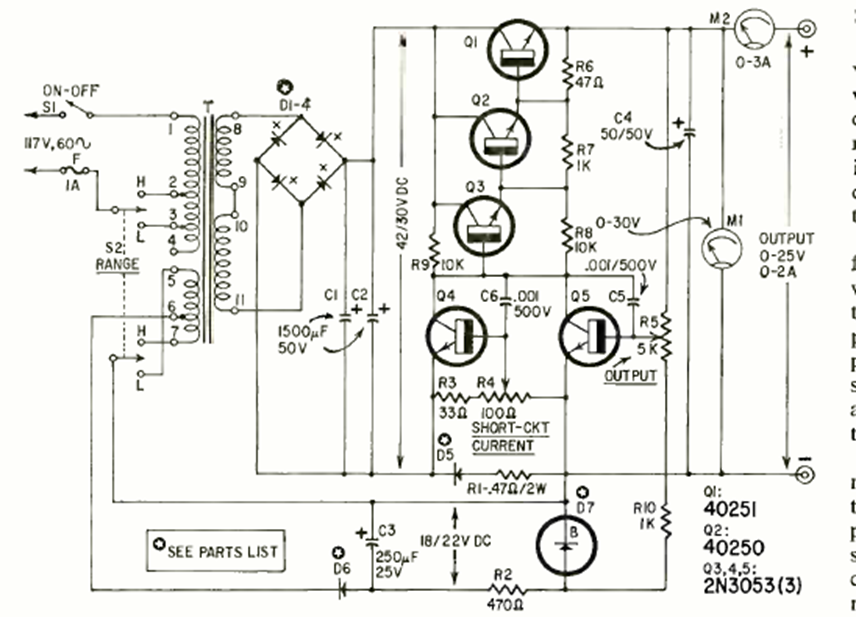

This circuit with silicon transistors at the time was found in the Radio Electronics magazine of June 19666. Transistor Q1 must be equipped with a good heat sink. The magazine described its complete assembly in an article.
